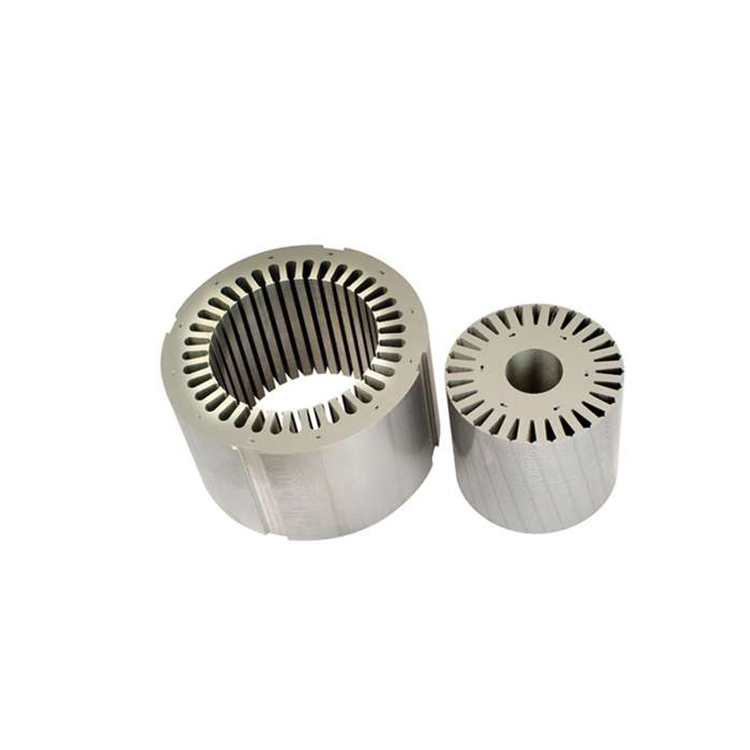

Stator & Rotor Laminations Machined Parts

Stator & Rotor Laminations Machined Parts

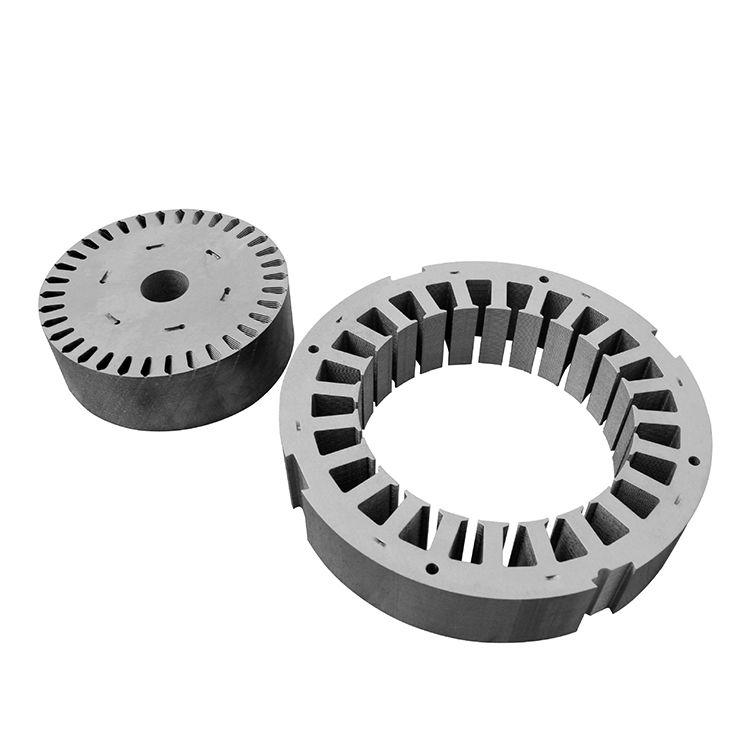

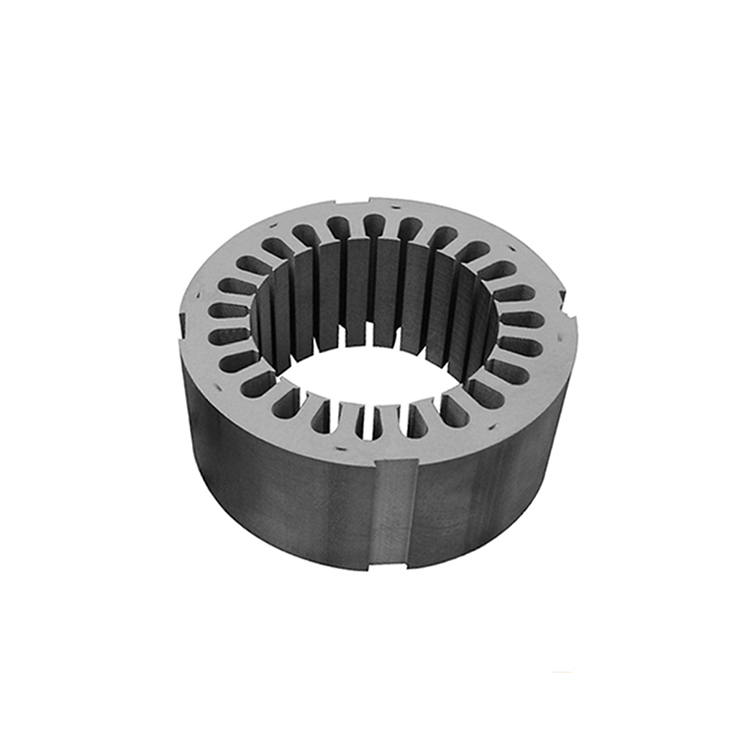

We supply stator and rotor lamination components and machined motor parts to customer drawings for electric motor, generator and rotating-equipment applications, with stack, bore and face tolerances controlled during machining.

Materials and Reference Tolerances

Laminations and machined motor parts are produced in electrical steels, carbon steels and selected non-ferrous grades. The table below lists typical reference options; the grade, coating and tolerance class are confirmed to suit the drawing and the application.

Stack, Bore and Balance

Lamination stacks may be clamped, riveted or bonded as required, and machined features such as bores, keyways and mounting faces are produced on the agreed datums. Balance and concentricity are considered where the application demands them.

Dimensional checks cover bore, stack length and face run-out before despatch, and inspection records can be supplied on request.

Drawing and Supply Flow

Enquiries are handled from drawing or sample. We review material, stack build and tolerances, quote accordingly, and produce to the agreed specification. Final configuration and quotation are to be confirmed on enquiry.
