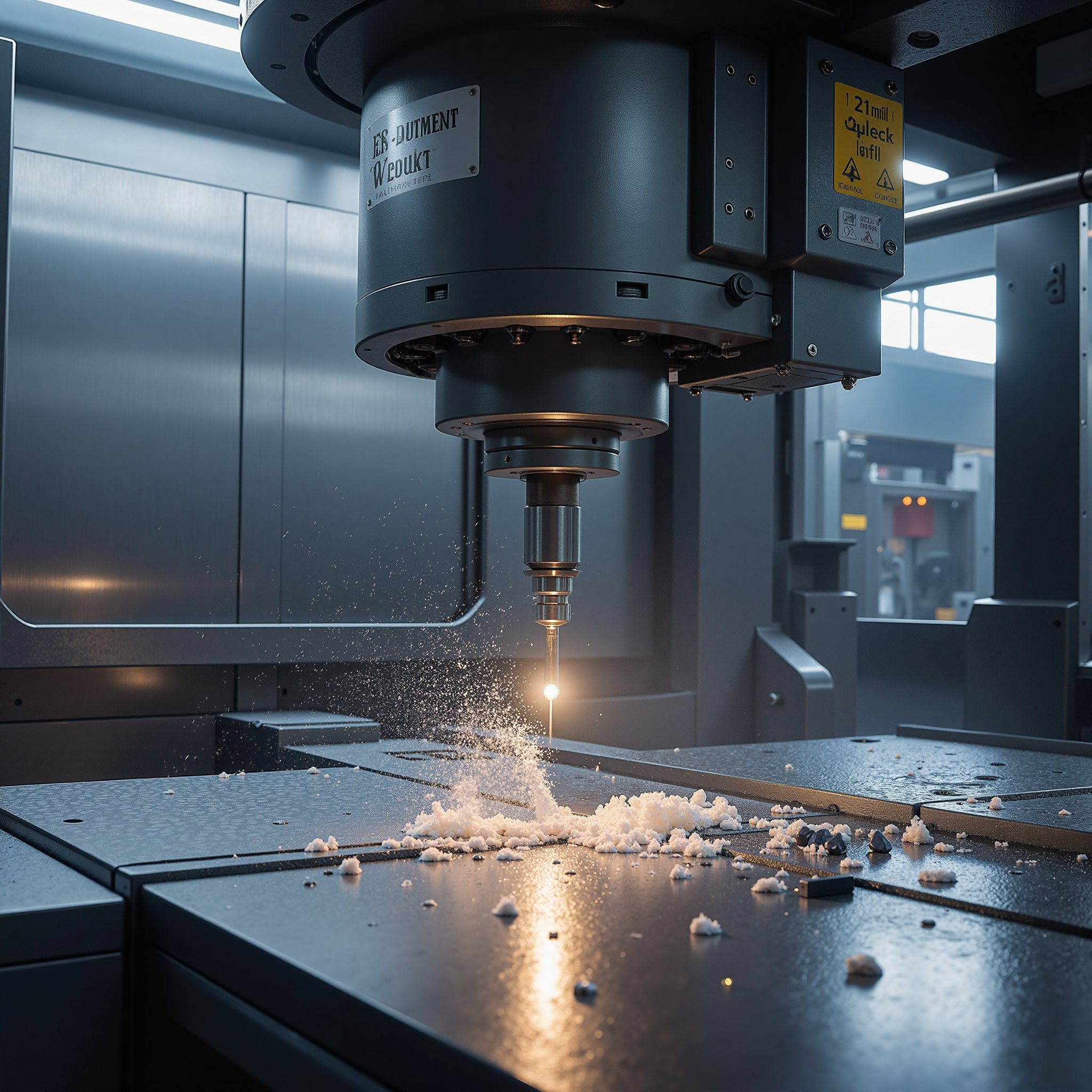

O/X-Series Gantry Machining Center (O-4025 / X-6030)
Large gantry machining center series for oversized moulds, plates and structural workpieces; gantry through width 2500–3000 mm and X travel up to 6000 mm.
- CategoryO-X-Series Gantry Machining Center
- Gantry 2500 mm, table 4000 × 2500 mm, 22 kWGMC-O4025
- Gantry 3000 mm, table 5000 × 3000 mm, 26 kWGMC-O5030
- Gantry 3000 mm, table 6000 × 3000 mm, 30 kWGMC-X6030
Price and lead time are quoted per configuration and quantity. Send us your part or capacity requirement and we will come back with a quotation.

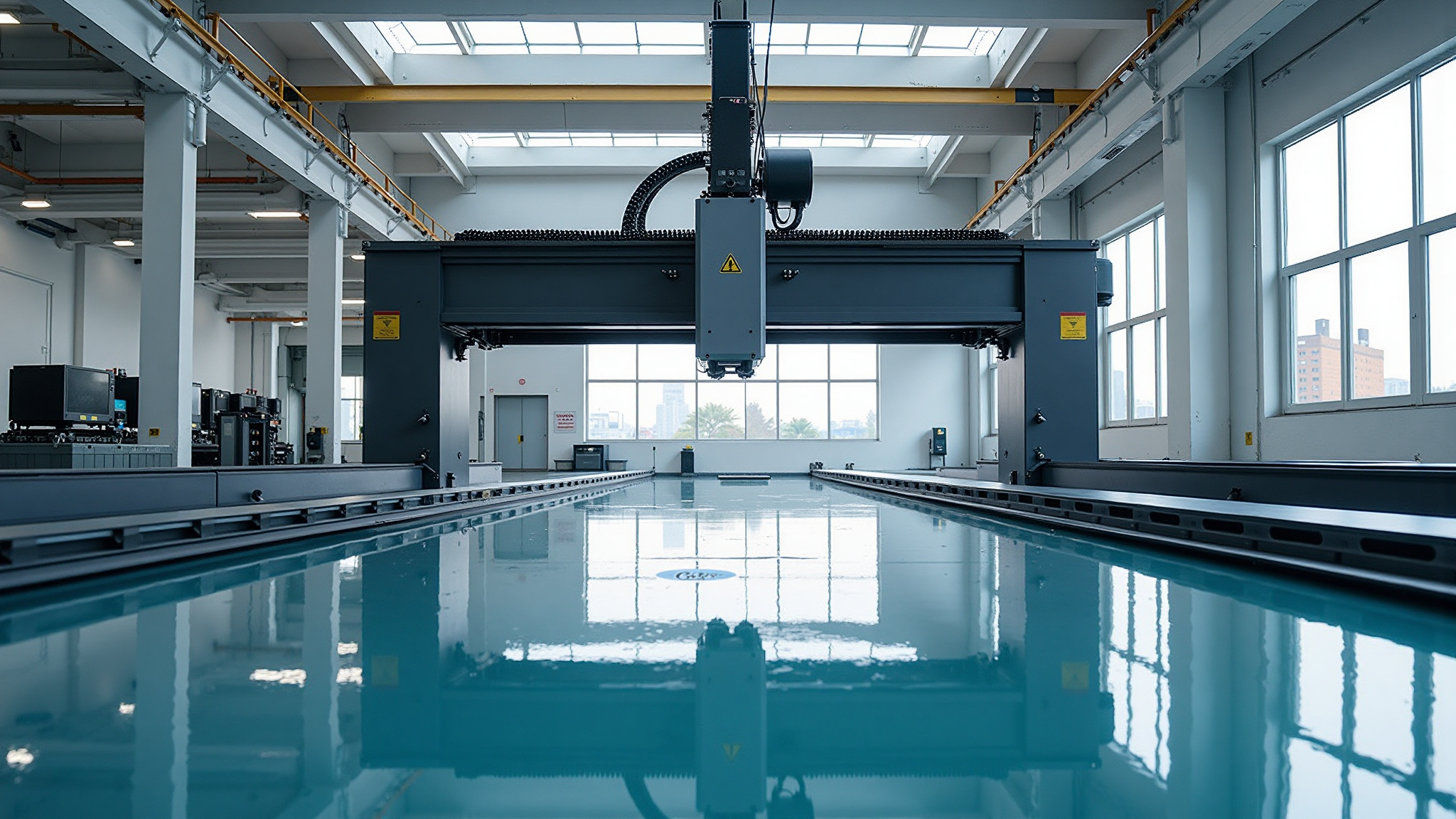

The O/X-series is a large gantry machining center family represented by the O-4025 and X-6030 formats. It is intended for oversized moulds, thick plates and structural workpieces where both a wide gantry and a long longitudinal travel are required.
Selection & Foundation Installation Notes
Select the model by the maximum part envelope rather than by average jobs, and confirm gantry clearance, Z travel and table load against the heaviest workpiece. Because of the machine size, a dedicated reinforced foundation and a careful levelling sequence are important; geometry should be verified after anchoring and after the first cutting trials.
Structural Rigidity Highlights

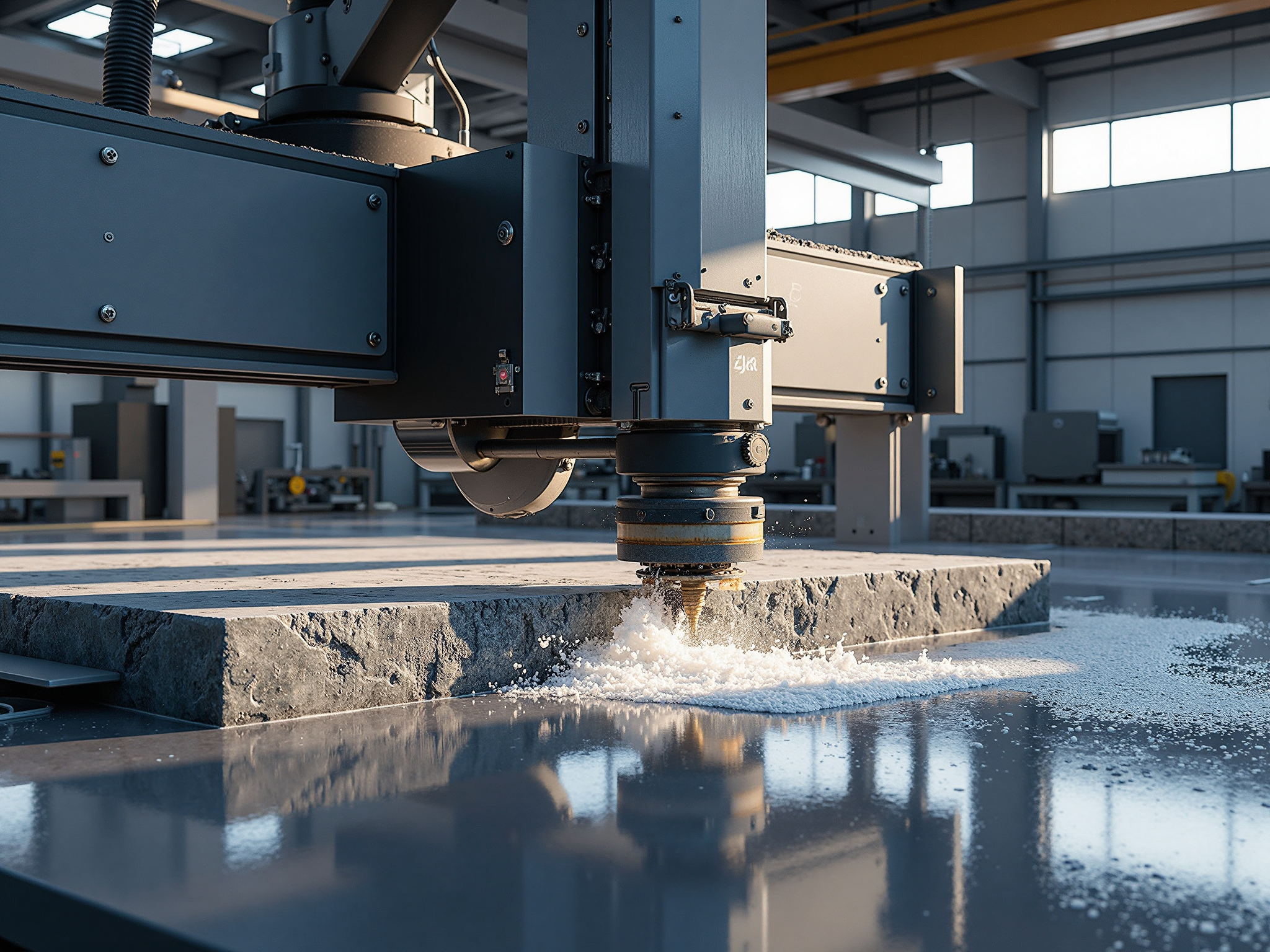

The double-column gantry and the heavy base are designed to resist torsion and deflection across the long travel range. Large-section guideways, a stiff cross-rail and a ribbed table support stable cutting even when the spindle head reaches the extremes of its stroke.
Typical Specifications
| Item | Typical reference range |
|---|---|
| Gantry through width | 2500 – 3000 mm |
| Worktable size | 4000 × 2500 – 6000 × 3000 mm |
| X / Y / Z travel | 4000 / 2500 / 1000 – 6000 / 3000 / 1250 mm |
| Spindle speed | 20 – 4000 rpm (typical) |
| Spindle motor power | 22 – 30 kW |
| Tool magazine | 24 – 40 tools (optional) |
| Positioning accuracy | approx. ±0.015 mm / 300 mm (reference) |
| Table load capacity | 10000 – 25000 kg |
| Column structure | double column, fixed cross-rail, configuration-dependent |
The values listed are typical industry reference ranges for selection; final configuration and quotation are subject to confirmed inquiry.
Suitable Workpieces
Typical work includes very large moulds and die plates, press and fixture bases, wind-power and heavy-machinery structural parts, and long plate-type components requiring face milling, drilling and large-pocket machining in one setup.
